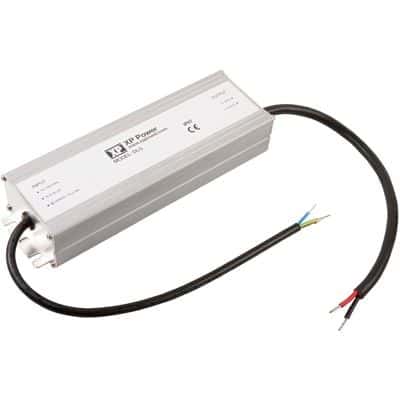

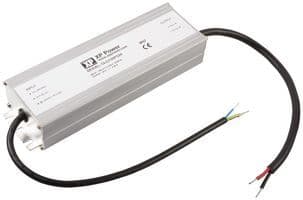

Constant Current & Constant Voltage LED Power Supply, 100W output power, 12V maximum output voltage, and 8.3A maximum output current. Features 90-305V AC input voltage range, 88% efficiency, and 3.75kV isolation voltage. Chassis and panel mountable with wire lead termination. Includes Over Voltage Protection (OVP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP). Operates from -30°C to 70°C and is UL, CE, IEC, and EN approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power DLG100PS12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power DLG100PS12 technical specifications.
| Approvals | UL, CE, IEC, EN |
| Package/Case | 100 |
| Efficiency | 88% |
| Features | OVP, OTP, SCP |
| Height | 1.54inch |
| Isolation Voltage | 3.75kV |
| Length | 8.74inch |
| Max Input Voltage | 305V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 8.3A |
| Max Output Power | 100W |
| Max Output Voltage | 12V |
| Max Power Dissipation | 100W |
| Mount | Chassis Mount, Panel |
| Number of Outputs | 1 |
| Output Current | 8.3A |
| Output Power | 99.6W |
| Output Voltage | 12V |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| Series | DLG |
| Termination | Wire Leads |
| Weight | 2.3lb |
| Width | 2.68inch |
| RoHS | Compliant |
