Enclosed AC/DC LED power supply, 100W output power, 36V maximum output voltage, and 2.8A maximum output current. Features constant voltage and current operation with a wide input voltage range of 90-305V AC. Offers 90% efficiency and includes over-voltage, over-temperature, and short-circuit protection. Chassis mountable with wire lead termination, this power supply operates from -30°C to 70°C and boasts 3.75kV isolation voltage. Approvals include UL, CE, IEC, and EN.
Package100
MountingChassis Mount, Panel
Power100.8W
Quick Jump:
Technical Specifications
XP Power DLG100PS36 technical specifications.
General
Approvals
UL, CE, IEC, EN
Package/Case
100
Efficiency
90%
Features
OVP, OTP, SCP
Height
1.54inch
Isolation Voltage
3.75kV
Length
8.74inch
Max Input Voltage
305V
Min Input Voltage
90V
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Output Current
2.8A
Max Output Power
100W
Max Output Voltage
36V
Max Power Dissipation
100W
Mount
Chassis Mount, Panel
Number of Outputs
1
Output Current
2.8A
Output Power
100.8W
Output Voltage
36V
Package Quantity
1
Reach SVHC Compliant
Unknown
Series
DLG
Termination
Wire Leads
Weight
2.3lb
Width
2.68inch
Compliance
RoHS
Compliant
Datasheet
XP Power DLG100PS36 Datasheet
Download the complete datasheet for XP Power DLG100PS36 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

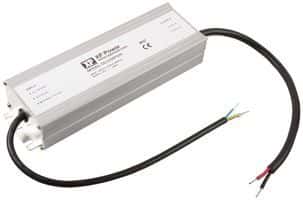

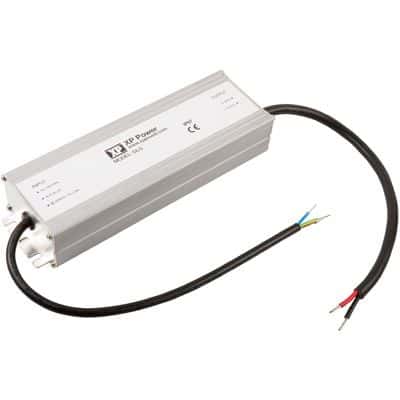

Product Images
