Enclosed AC/DC LED power supply, 75W output power, featuring constant voltage and current operation. Delivers 36V output voltage at 2.1A maximum output current. Operates from a 90V to 305V AC input range with 88% efficiency. Includes over-voltage, over-temperature, and short-circuit protection. Chassis mountable with wire lead termination, suitable for -40°C to 60°C operating temperatures. Approvals include UL, CE, IEC, and EN.
MountingChassis Mount, Panel
Power75.6W
Quick Jump:
Technical Specifications
XP Power DLG75PS36 technical specifications.
General
Approvals
UL, CE, IEC, EN
Efficiency
88%
Features
OVP, OTP, SCP
Height
1.54inch
Isolation Voltage
3.75kV
Length
6.93inch
Max Input Voltage
305V
Min Input Voltage
90V
Max Operating Temperature
60°C
Min Operating Temperature
-40°C
Max Output Current
2.1A
Max Output Power
75W
Max Output Voltage
36V
Max Power Dissipation
75W
Mount
Chassis Mount, Panel
Number of Outputs
1
Output Current
2.1A
Output Power
75.6W
Output Voltage
36V
Package Quantity
1
Reach SVHC Compliant
Unknown
Series
DLG
Termination
Wire Leads
Weight
2lb
Width
2.68inch
Compliance
RoHS
Compliant
Datasheet
XP Power DLG75PS36 Datasheet
Download the complete datasheet for XP Power DLG75PS36 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

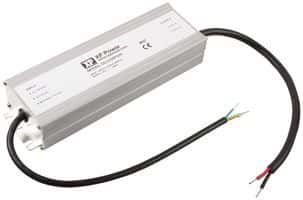

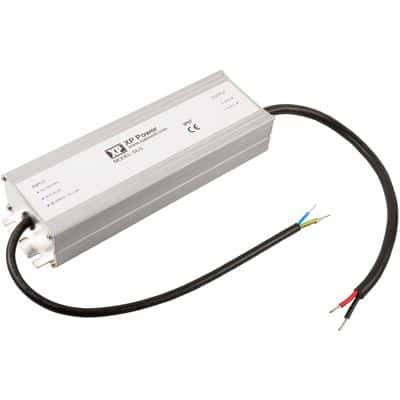

Product Images
