60W AC-DC regulated power supply module, featuring a 24V nominal output voltage and 2.5A maximum output current. This board mount DC/DC converter operates with an efficiency of 89% across an input voltage range of 85V to 264V AC. It provides 3kV isolation voltage and is RoHS compliant. The module has a maximum operating temperature of 70°C and a minimum of -20°C, with a height of 90mm.
MountingDIN Rail
Power60W
Quick Jump:
Technical Specifications
XP Power DNR60US24 technical specifications.
General
| Current - Output 1 | 2.5A |
| Efficiency | 89% |
| Height | 90mm |
| Isolation Voltage | 3kV |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Max Power Dissipation | 60W |
| Mount | DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Power | 60W |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DNR (60W) |
| Voltage - Output 1 | 24V |
Compliance
| RoHS | Compliant |
Datasheet
XP Power DNR60US24 Datasheet
Download the complete datasheet for XP Power DNR60US24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

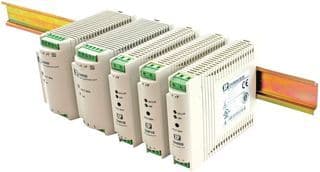

Product Images
