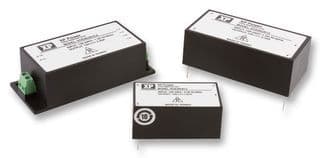

Single-output AC/DC power supply delivering 5V at 8A, with a maximum output power of 40W. Features include Over Voltage Protection (OVP) and Short Circuit Protection (SCP). Operates from 85-264V AC input, with an efficiency of 77%. Designed for PCB mounting via through-hole technology, this power supply has a compact form factor with dimensions of 78.7mm (depth) x 38.1mm (width) x 27.9mm (height). Operating temperature range is -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ECE40US05 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power ECE40US05 technical specifications.
| Current - Output 1 | 8A |
| Depth | 78.7mm |
| Efficiency | 77% |
| Features | OVP, SCP |
| Height | 27.9mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 8A |
| Max Output Power | 40W |
| Max Power Dissipation | 40W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Power | 40W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECE (40W) |
| Voltage - Output 1 | 5V |
| Weight | 0.331lb |
| Width | 38.1mm |
| RoHS | Compliant |
