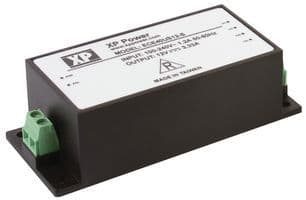

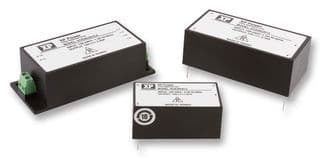

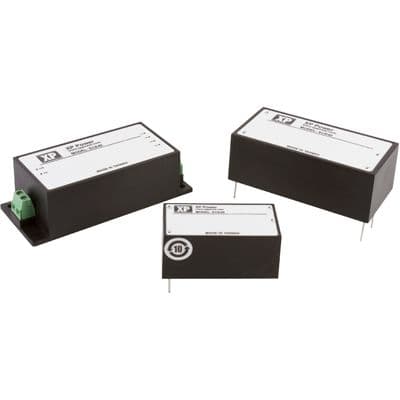

Board mount AC/DC converter delivering 40W output power at 5V nominal voltage. Features a single output with a maximum current of 8A. Operates across an AC input voltage range of 85V to 264V with 3kV isolation voltage. Efficiency is rated at 77%, with operating temperatures from -25°C to 70°C. Dimensions are 3.78 inches in length, 1.57 inches in width, and 1.12 inches in height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ECE40US05-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power ECE40US05-S technical specifications.
| Current - Output 1 | 8A |
| Efficiency | 77% |
| Height | 1.12inch |
| Isolation Voltage | 3kV |
| Length | 3.78inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 8A |
| Max Output Power | 40W |
| Max Power Dissipation | 40W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Power | 40W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ECE |
| Voltage - Output 1 | 5V |
| Width | 1.57inch |
| RoHS | Not Compliant |
