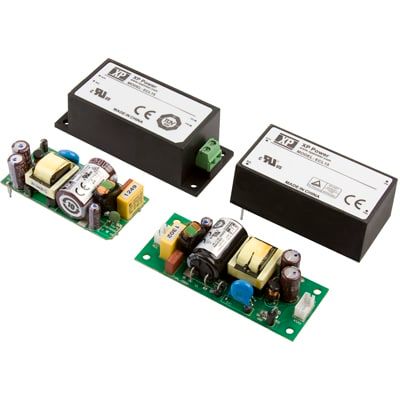

15W AC/DC power supply, single output, delivering 15V at 1A. Features 80% efficiency, over-voltage protection (OVP), and short-circuit protection (SCP). Operates across a wide input voltage range of 85-264V AC and is suitable for temperatures from -20°C to 70°C. Through-hole mounting design with approvals including UL, CSA, IEC, and EN.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ECL15US15-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power ECL15US15-P technical specifications.
| Approvals | UL, CSA, IEC, EN |
| Current - Output 1 | 1A |
| Depth | 62mm |
| Efficiency | 80% |
| Features | OVP, SCP |
| Height | 0.96inch |
| Length | 2.44inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 1A |
| Max Output Power | 15W |
| Max Power Dissipation | 15W |
| Mount | Through Hole |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Package Quantity | 5 |
| Reach SVHC Compliant | Unknown |
| Series | ECL |
| Voltage - Output 1 | 15V |
| Weight | 0.077lb |
| Width | 1.21inch |
| RoHS | Compliant |
