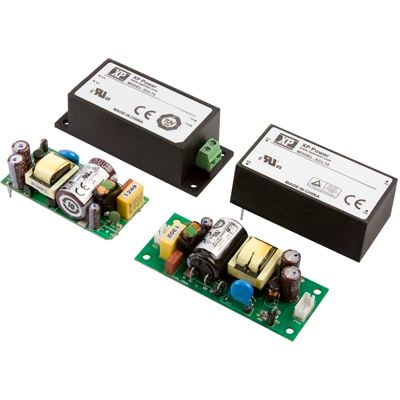

15W AC/DC power supply featuring a single 24V output at 630mA. This general-purpose power supply operates from 85-264V AC input, delivering 15W maximum output power with 82% efficiency. Protection features include Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). Approvals include UL, CSA, IEC, and EN. The compact, through-hole mount design measures 2.44" L x 1.21" W x 0.96" H, suitable for operating temperatures from -20°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ECL15US24-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, IEC, EN |
| Current - Output 1 | 630mA |
| Depth | 62mm |
| Efficiency | 82% |
| Features | OVP, OCP, SCP |
| Height | 0.96inch |
| Length | 2.44inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 630mA |
| Max Output Power | 15W |
| Max Power Dissipation | 15W |
| Mount | Through Hole |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| Series | ECL |
| Voltage - Output 1 | 24V |
| Weight | 0.07lb |
| Width | 1.21inch |
| RoHS | Compliant |
