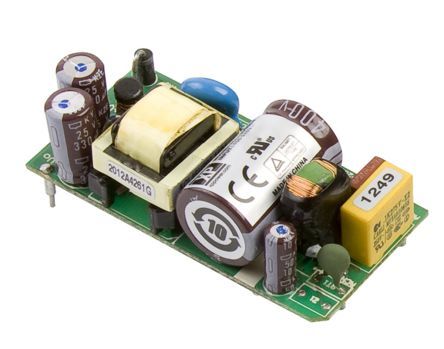

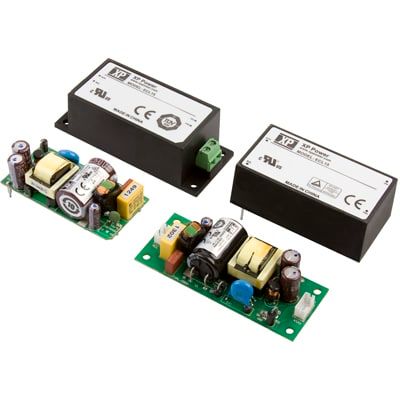

Triple-output AC/DC power supply delivering 15W total output power. Features 5V at 2A, 12V at 200mA, and -12V at 200mA outputs. Operates from 85-264V AC input with 81% efficiency. Includes Over Voltage Protection (OVP) and Short Circuit Protection (SCP). Through-hole, PCB mountable with a compact 2.44" x 1.21" x 0.96" (62mm x 30.7mm x 24.4mm) footprint. Compliant with UL, CSA, IEC, EN standards and RoHS.
MountingThrough Hole, PCB
Power15W
Quick Jump:
Technical Specifications
XP Power ECL15UT02-P technical specifications.
General
Approvals
UL, CSA, IEC, EN
Current - Output 1
2A
Current - Output 2
200mA
Current - Output 3
200mA
Depth
62mm
Efficiency
81%
Features
OVP, SCP
Height
0.96inch
Length
2.44inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Current
2A
Max Output Power
15W
Max Power Dissipation
15W
Mount
Through Hole, PCB
Number of Outputs
3
Output Power
15W
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECL
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Weight
0.088lb
Width
1.21inch
Compliance
RoHS
Compliant
Datasheet
XP Power ECL15UT02-P Datasheet
Download the complete datasheet for XP Power ECL15UT02-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
