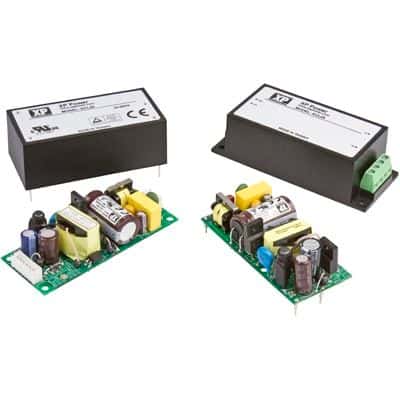

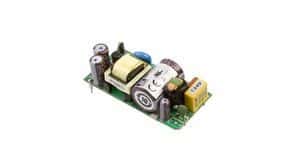

25W AC/DC power supply, single output, delivering 5V at 5A. Features 85-264V AC input, 78% efficiency, and 3kV isolation voltage. Includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP). Through-hole mount design, operating from -20°C to 70°C. Approvals include UL, CSA, IEC, and EN. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ECL25US05-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power ECL25US05-P technical specifications.
| Approvals | UL, CSA, IEC, EN |
| Current - Output 1 | 5A |
| Depth | 75.2mm |
| Efficiency | 78% |
| Features | OVP, OCP, SCP |
| Height | 1.05inch |
| Input Current | 400uA |
| Isolation Voltage | 3kV |
| Length | 2.96inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 5A |
| Max Output Power | 25W |
| Max Power Dissipation | 25W |
| Mount | Through Hole |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ECL |
| Voltage - Output 1 | 5V |
| Weight | 0.14lb |
| Width | 1.36inch |
| RoHS | Compliant |
