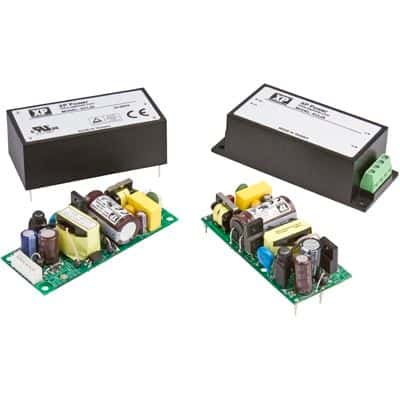

25W AC/DC power supply featuring a single 24V output at 1.04A. This chassis mount unit offers 3kV isolation voltage and operates across an input voltage range of 85-264V AC with 82% efficiency. Designed for a wide temperature range of -20°C to 70°C, it measures 3.78 inches in length, 1.57 inches in width, and 1.12 inches in height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ECL25US24-S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power ECL25US24-S technical specifications.
| Current - Output 1 | 1.04A |
| Efficiency | 82% |
| Height | 1.12inch |
| Isolation Voltage | 3kV |
| Length | 3.78inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 1.04A |
| Max Output Power | 25W |
| Max Power Dissipation | 25W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Power | 25W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ECL |
| Voltage - Output 1 | 24V |
| Width | 1.57inch |
| RoHS | Compliant |
