30W AC/DC power supply featuring dual outputs of 12V and -12V, each capable of delivering 1.3A. This general-purpose power supply operates from 85-264V AC input, boasts 84% efficiency, and includes overvoltage (OVP) and short-circuit (SCP) protection. Designed for through-hole PCB mounting, it operates within a -20°C to 70°C temperature range and holds UL, CSA, IEC, and EN approvals.
MountingThrough Hole, PCB
Power30W
Quick Jump:
Technical Specifications
XP Power ECL30UD01-P technical specifications.
General
| Approvals | UL, CSA, IEC, EN |
| Current - Output 1 | 1.3A |
| Current - Output 2 | 1.3A |
| Depth | 75.2mm |
| Efficiency | 84% |
| Features | OVP, SCP |
| Height | 1.05inch |
| Length | 2.96inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 1.3A |
| Max Output Power | 30W |
| Max Power Dissipation | 30W |
| Mount | Through Hole, PCB |
| Number of Outputs | 2 |
| Output Power | 30W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ECL |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 0.132lb |
| Width | 1.36inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power ECL30UD01-P Datasheet
Download the complete datasheet for XP Power ECL30UD01-P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

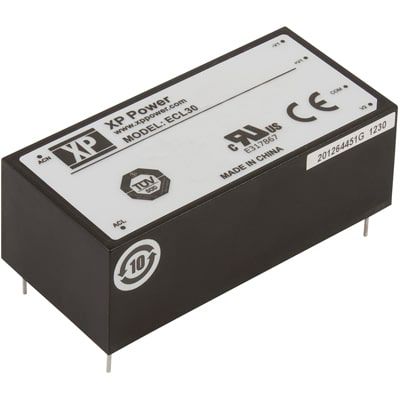

Product Images
