60W AC/DC power supply, single output, delivering 12V at 5A. Features 80% efficiency, 4kV isolation voltage, and operates from 90-264V AC input. Designed for medical applications with a 0°C to 70°C operating temperature range. Chassis mountable with 8-pin termination. RoHS compliant.
Frequency63Hz
MountingChassis Mount, Chassis
Power60W
Quick Jump:
Technical Specifications
XP Power ECM60US12 technical specifications.
General
Current - Output 1
5A
Efficiency
80%
Frequency
63Hz
Input Current
600mA
Isolation Voltage
4kV
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
90V
Max Input Voltage
264V
Min Input Voltage
90V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
5A
Max Output Power
60W
Max Power Dissipation
60W
Mount
Chassis Mount, Chassis
Nominal Output Voltage
12V
Number of Outputs
1
Output Power
60W
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ECM (60W)
Voltage - Output 1
12V
Compliance
RoHS
Compliant
Datasheet
XP Power ECM60US12 Datasheet
Download the complete datasheet for XP Power ECM60US12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

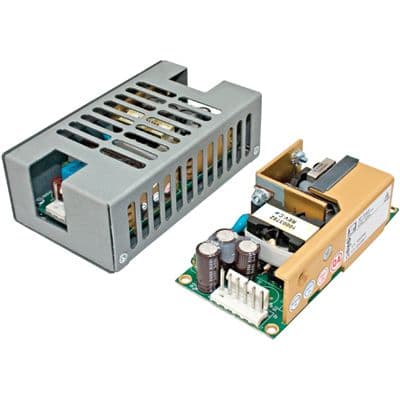

Product Images
