65W AC-DC regulated power supply module, featuring a single 28V output at 2.3A. This board mount DC/DC converter operates from 80-264V AC input, delivering 65W maximum output power with 90% efficiency. It boasts 4kV isolation voltage and a wide operating temperature range of -20°C to 70°C. The module is RoHS compliant and designed for chassis mounting, with dimensions of 4 inches in length, 2 inches in width, and 1.05 inches in height.
MountingChassis Mount, Chassis
Power65W
Quick Jump:
Technical Specifications
XP Power ECS65US28 technical specifications.
General
| Approvals | CB |
| Current - Output 1 | 2.3A |
| Efficiency | 90% |
| Height | 1.05inch |
| Isolation Voltage | 4kV |
| Length | 4inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 80V |
| Max Input Voltage | 264V |
| Min Input Voltage | 80V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2.3A |
| Max Output Power | 65W |
| Max Power Dissipation | 65W |
| Mount | Chassis Mount, Chassis |
| Nominal Output Voltage | 28V |
| Number of Outputs | 1 |
| Output Power | 65W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ECS |
| Voltage - Output 1 | 28V |
| Width | 2inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power ECS65US28 Datasheet
Download the complete datasheet for XP Power ECS65US28 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

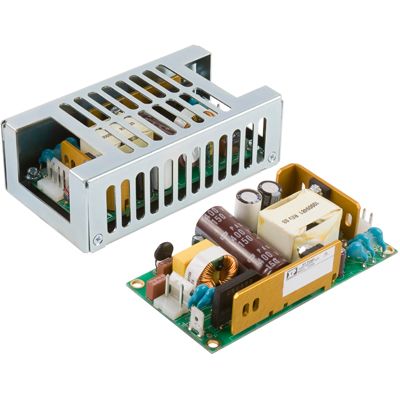

Product Images
