2W DC/DC converter module with dual ±9V outputs, each delivering 111mA. Features 1kV isolation, 77% efficiency, and a compact SIL package for PCB mounting. Operates from a 10.8V to 13.2V DC input, with a 12V nominal supply voltage. Wide operating temperature range from -40°C to 85°C.
PackageSIL
MountingThrough Hole, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power IH1209S technical specifications.
General
| Package/Case | SIL |
| Current - Output 1 | 111mA |
| Current - Output 2 | 111mA |
| Depth | 19.5mm |
| Efficiency | 77% |
| Height | 0.4inch |
| Isolation Voltage | 1kV |
| Length | 0.77inch |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 111mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | -9V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 12V |
| Output Current | 111mA |
| Output Power | 2W |
| Output Voltage | 9V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | IH |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Width | 0.28inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power IH1209S Datasheet
Download the complete datasheet for XP Power IH1209S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

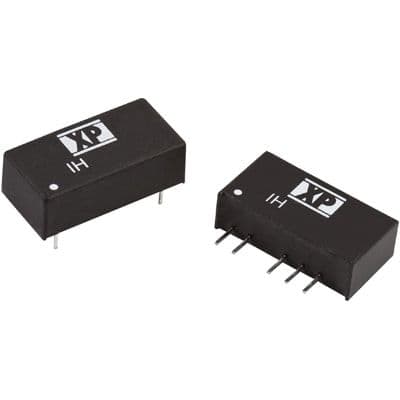

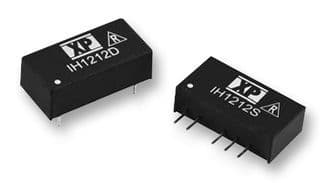

Product Images
