2W DC-DC regulated power supply module, 5V nominal output voltage, 400mA output current. Features 1kV isolation voltage, 78% efficiency, and a compact SIL package measuring 0.46 x 0.3 x 0.4 inches. Operates from a 10.8V to 13.2V DC input, with a maximum power dissipation of 2W. Suitable for PCB mounting with a temperature range of -40°C to 85°C.
PackageSIL
MountingThrough Hole, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power IL1205S technical specifications.
General
Package/Case
SIL
Current - Output 1
400mA
Depth
7.5mm
Efficiency
78%
Height
0.4inch
Isolation Voltage
1kV
Length
0.46inch
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Through Hole, PCB
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
12V
Output Current
400mA
Output Power
2W
Output Voltage
5V
Package Quantity
42
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
IL
Voltage - Output 1
5V
Width
0.3inch
Compliance
RoHS
Compliant
Datasheet
XP Power IL1205S Datasheet
Download the complete datasheet for XP Power IL1205S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

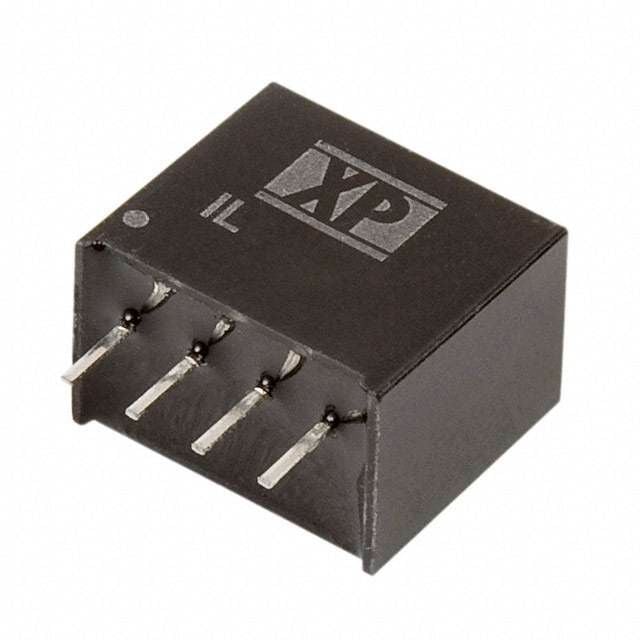

Product Images
