2W DC-DC regulated power supply module, 1 output, 5V nominal output voltage, 400mA maximum output current. Features 1.5kV isolation voltage, 80% efficiency, and short-circuit protection (SCP). Operates from an 18V to 75V DC input range, with a nominal input of 48V. Packaged in a SIP form factor for through-hole PCB mounting, with dimensions of 26mm depth, 0.49inch height, 1.02inch length, and 0.36inch width. Suitable for operating temperatures from -40°C to 100°C.
PackageSIP
MountingThrough Hole, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power IM4805SA technical specifications.
General
Package/Case
SIP
Current - Output 1
400mA
Depth
26mm
Efficiency
80%
Features
SCP
Height
0.49inch
Isolation Voltage
1.5kV
Length
1.02inch
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
18V
Max Input Voltage
75V
Min Input Voltage
18V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Through Hole, PCB
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
48V
Output Current
400mA
Output Power
2W
Output Voltage
5V
Package Quantity
19
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
IM
Voltage - Output 1
5V
Width
0.36inch
Compliance
RoHS
Compliant
Datasheet
XP Power IM4805SA Datasheet
Download the complete datasheet for XP Power IM4805SA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

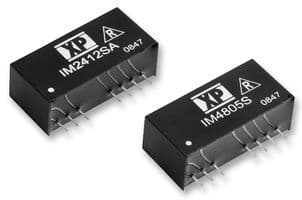

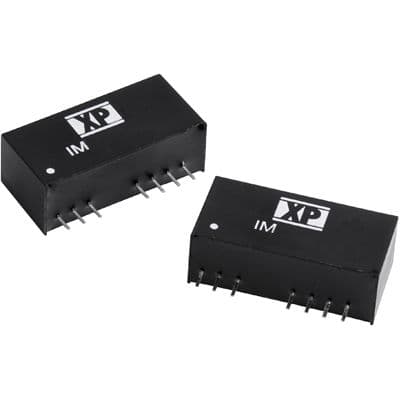

Product Images
