2W, dual output, regulated DC-DC converter module featuring SIP packaging for board mounting. Delivers 12V and -12V outputs, each with 85mA maximum current, from an 18V to 75V DC input range. Offers 1.5kV isolation voltage and 81% efficiency, with short-circuit protection (SCP) and a wide operating temperature range of -40°C to 100°C. Through-hole PCB mounting design.
PackageSIP
MountingThrough Hole, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power IM4812S technical specifications.
General
Package/Case
SIP
Current - Output 1
85mA
Current - Output 2
85mA
Depth
26mm
Efficiency
81%
Features
SCP
Height
0.49inch
Isolation Voltage
1.5kV
Length
1.02inch
Max Input Voltage (DC)
75V
Min Input Voltage (DC)
18V
Max Input Voltage
75V
Min Input Voltage
18V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
85mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Through Hole, PCB
Nominal Output Voltage
-12V
Number of Outputs
2
Operating Supply Voltage
48V
Output Current
85mA
Output Power
2W
Output Voltage
12V
Package Quantity
19
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
IM
Voltage - Output 1
12V
Voltage - Output 2
-12V
Width
0.36inch
Compliance
RoHS
Compliant
Datasheet
XP Power IM4812S Datasheet
Download the complete datasheet for XP Power IM4812S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

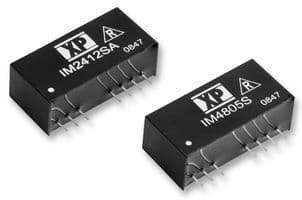

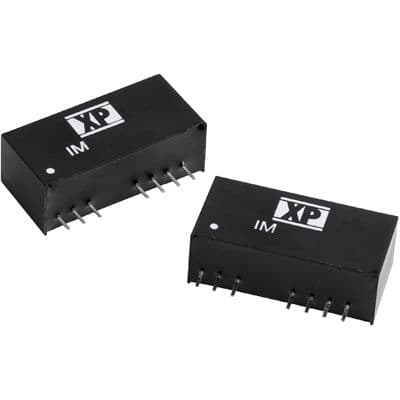

Product Images
