2W, dual output, regulated DC-DC converter module with 5V and -5V outputs, each rated for 200mA. Features 1.5kV isolation voltage and operates from a 9V to 18V DC input range. This hybrid, surface-mount component offers 74% efficiency and a compact SMD-16/6 package measuring 0.94 x 0.54 x 0.31 inches. Suitable for PCB mounting, it operates across a -40°C to 85°C temperature range and includes short-circuit protection.
PackageSMD/SMT
MountingSurface Mount, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power ISP1205 technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
200mA
Current - Output 2
200mA
Depth
23.86mm
Efficiency
74%
Features
SCP
Height
0.31inch
Isolation Voltage
1.5kV
Length
0.94inch
Max Input Voltage (DC)
18V
Min Input Voltage (DC)
9V
Max Input Voltage
18V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Surface Mount, PCB
Nominal Output Voltage
-5V
Number of Outputs
2
Operating Supply Voltage
12V
Output Current
200mA
Output Power
2W
Output Voltage
5V
Package Quantity
8
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ISP
Voltage - Output 1
5V
Voltage - Output 2
-5V
Width
0.54inch
Compliance
RoHS
Compliant
Datasheet
XP Power ISP1205 Datasheet
Download the complete datasheet for XP Power ISP1205 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

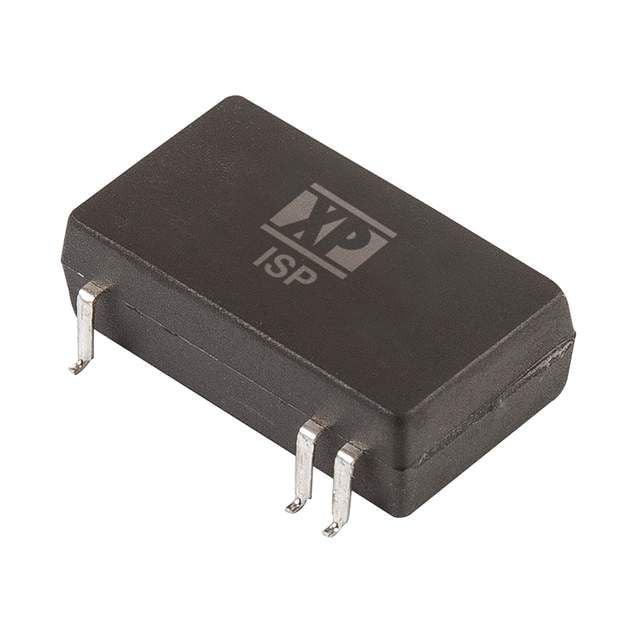

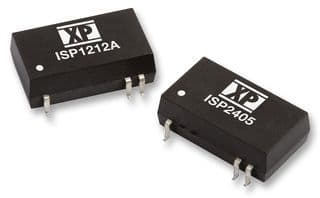

Product Images
