2W DC-DC regulated power supply module, featuring a hybrid, SMD-16/6 package for surface mount applications. Delivers dual outputs of 12V and -12V, each with 83mA maximum output current. Offers 1.5kV isolation voltage and operates within a 9V to 18V DC input range, with a nominal input of 12V. Achieves 78% efficiency and includes short-circuit protection (SCP). Dimensions are 23.86mm depth, 7.5mm height, and 13.7mm width, with an operating temperature range of -40°C to 85°C.
PackageSMD/SMT
MountingSurface Mount, PCB
Power2W
Quick Jump:
Technical Specifications
XP Power ISP1212 technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 83mA |
| Current - Output 2 | 83mA |
| Depth | 23.86mm |
| Efficiency | 78% |
| Features | SCP |
| Height | 7.5mm |
| Isolation Voltage | 1.5kV |
| Max Input Voltage (DC) | 18V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 18V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 83mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Surface Mount, PCB |
| Nominal Output Voltage | -12V |
| Number of Outputs | 2 |
| Operating Supply Voltage | 12V |
| Output Current | 83mA |
| Output Power | 2W |
| Output Voltage | 12V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ISP (2W) |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 13.7mm |
Compliance
| RoHS | Compliant |
Datasheet
XP Power ISP1212 Datasheet
Download the complete datasheet for XP Power ISP1212 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

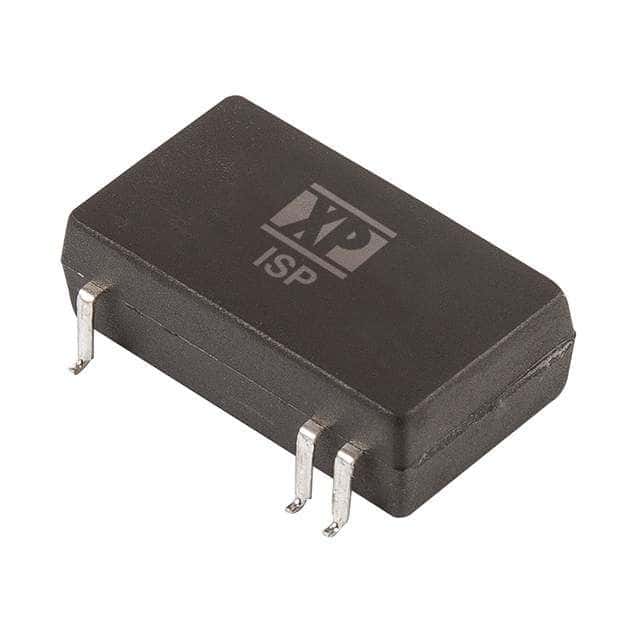

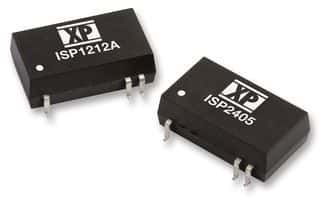

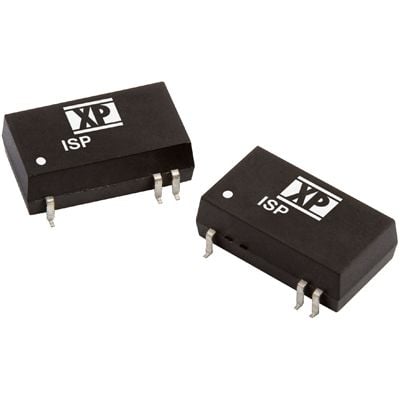

Product Images
