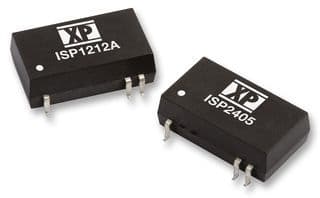

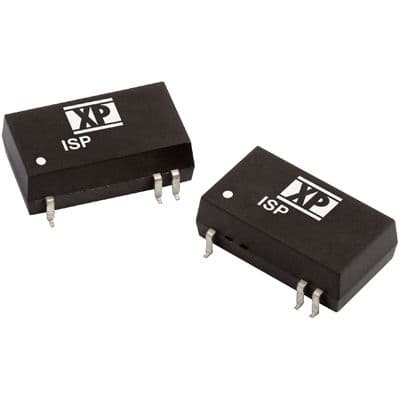

2W DC-DC regulated power supply module, featuring a single 15V output and a hybrid construction. This surface mountable component offers 1.5kV isolation voltage and operates within a wide temperature range of -40°C to 85°C. It supports an input voltage range of 18V to 36V DC, with a nominal operating supply voltage of 24V. The module boasts 80% efficiency and includes short-circuit protection (SCP). Its compact SMD-16/6 package measures 0.94 inches in length, 0.54 inches in width, and 0.31 inches in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ISP2415A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Depth | 23.86mm |
| Efficiency | 80% |
| Features | SCP |
| Height | 0.31inch |
| Isolation Voltage | 1.5kV |
| Length | 0.94inch |
| Max Input Voltage (DC) | 26.4V |
| Min Input Voltage (DC) | 21.6V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 2W |
| Max Power Dissipation | 2W |
| Mount | Surface Mount, PCB |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 24V |
| Output Current | 133mA |
| Output Power | 2W |
| Output Voltage | 15V |
| Package Quantity | 8 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ISP |
| Voltage - Output 1 | 15V |
| Width | 0.54inch |
| RoHS | Compliant |
