6W DC-DC regulated power supply module, featuring a single 12V output at 500mA. This hybrid, board-mount converter operates with an input voltage range of 4.5V to 9V DC, achieving 84% efficiency. Housed in a SIP package, it offers 1.5kV isolation voltage and includes short-circuit protection (SCP). Operating temperature range is -40°C to 65°C, with dimensions of 21.85mm depth, 0.44 inches height, 0.86 inches length, and 0.36 inches width.
PackageSIP
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
XP Power ITX0512SA technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 500mA |
| Depth | 21.85mm |
| Efficiency | 84% |
| Features | SCP |
| Height | 0.44inch |
| Isolation Voltage | 1.5kV |
| Length | 0.86inch |
| Max Input Voltage (DC) | 9V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 9V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Power | 6W |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ITX |
| Voltage - Output 1 | 12V |
| Width | 0.36inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power ITX0512SA Datasheet
Download the complete datasheet for XP Power ITX0512SA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

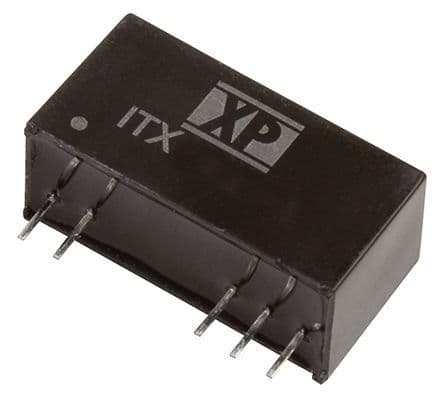

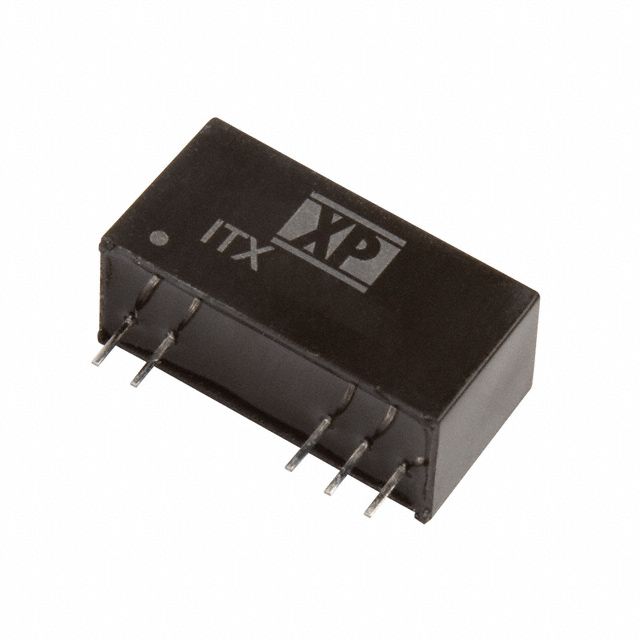

Product Images
