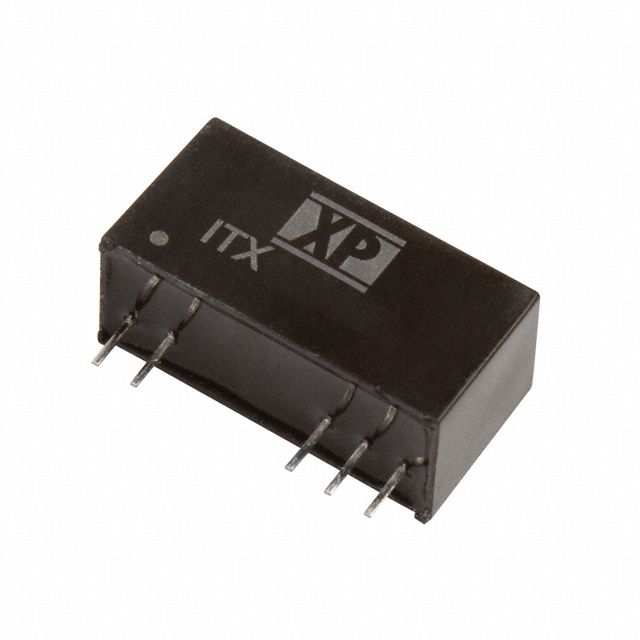

6W DC-DC regulated power supply module, 1.2A max output current at 5V nominal output voltage. Features 1.5kV isolation voltage and short-circuit protection (SCP). Operates within an 18V to 36V DC input range with 83% efficiency. Hybrid SIP package for through-hole PCB mounting, with dimensions of 21.85mm depth, 0.44-inch height, 0.86-inch length, and 0.36-inch width. Rated for -40°C to 65°C operating temperature.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power ITX2405SA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power ITX2405SA technical specifications.
| Package/Case | SIP |
| Current - Output 1 | 1.2A |
| Depth | 21.85mm |
| Efficiency | 83% |
| Features | SCP |
| Height | 0.44inch |
| Isolation Voltage | 1.5kV |
| Length | 0.86inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.2A |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Power | 6W |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ITX |
| Voltage - Output 1 | 5V |
| Width | 0.36inch |
| RoHS | Compliant |
