Isolated board mount DC/DC converter, 6W output power, featuring a 2:1 input voltage range (36V to 75V DC) and a fixed 9V output at 666mA. This SIP package converter offers 1.5kV isolation and 84% efficiency, with short circuit protection (SCP). Operating temperature range is -40°C to 65°C. Through-hole PCB mounting is supported.
PackageSIP
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
XP Power ITX4809SA technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 666mA |
| Depth | 21.85mm |
| Efficiency | 84% |
| Features | SCP |
| Height | 11.1mm |
| Isolation Voltage | 1.5kV |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 36V |
| Max Input Voltage | 75V |
| Min Input Voltage | 36V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 666mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 9V |
| Number of Outputs | 1 |
| Output Power | 6W |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ITX (6W) |
| Voltage - Output 1 | 9V |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
XP Power ITX4809SA Datasheet
Download the complete datasheet for XP Power ITX4809SA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

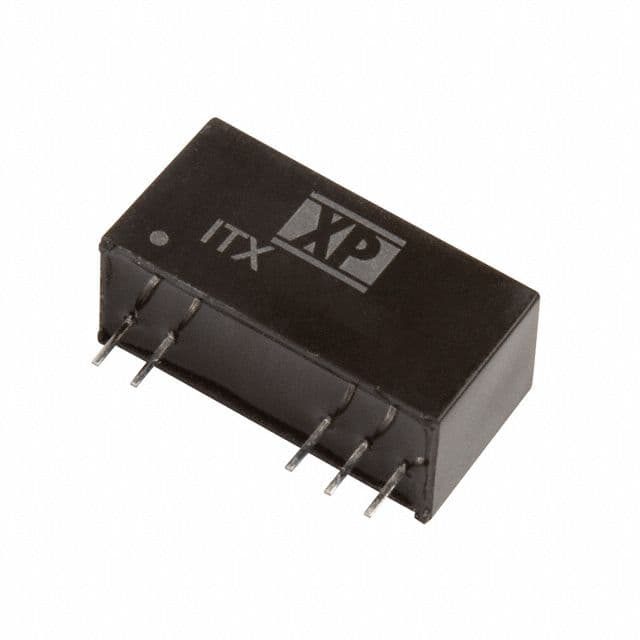

Product Images
