6W DC-DC regulated power supply module featuring dual 12V and -12V outputs, each delivering 250mA. This hybrid board mount converter operates from an 18-36V DC input, boasts 84% efficiency, and provides 1.5kV isolation. Integrated protection includes UVLO, OVP, OCP, and SCP. The module is designed for through-hole PCB mounting and operates within a -40°C to 100°C temperature range.
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
XP Power JCA0624D02 technical specifications.
General
| Current - Output 1 | 250mA |
| Current - Output 2 | 250mA |
| Depth | 25.4mm |
| Efficiency | 84% |
| Features | UVLO, OVP, OCP, SCP |
| Height | 0.39inch |
| Isolation Voltage | 1.5kV |
| Length | 1inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Number of Outputs | 2 |
| Output Power | 6W |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | JCA |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Width | 0.8inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power JCA0624D02 Datasheet
Download the complete datasheet for XP Power JCA0624D02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

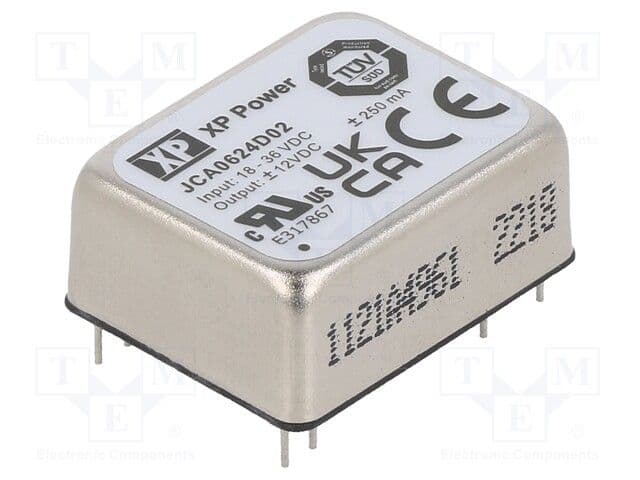

Product Images
