30W DC-DC regulated power supply module, board mount, 1 output, 5V nominal output voltage, 6A maximum output current. Features 91% efficiency, 1.6kV isolation voltage, and operates from a 36V to 75V DC input range. Integrated protection includes UVLO, OVP, OCP, and SCP. This hybrid module is housed in a DIP package with through-hole mounting for PCBs, measuring 25.4mm width, 50.8mm depth, and 10.16mm height.
PackageDIP
MountingThrough Hole, PCB
Power30W
Quick Jump:
Technical Specifications
XP Power JCK3048S05 technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 6A |
| Depth | 50.8mm |
| Efficiency | 91% |
| Features | UVLO, OVP, OCP, SCP |
| Height | 10.16mm |
| Isolation Voltage | 1.6kV |
| Max Input Voltage (DC) | 75V |
| Min Input Voltage (DC) | 36V |
| Max Input Voltage | 75V |
| Min Input Voltage | 36V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Power | 30W |
| Max Power Dissipation | 30W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 48V |
| Output Current | 6A |
| Output Power | 30W |
| Output Voltage | 5V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | JCK (30W) |
| Voltage - Output 1 | 5V |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
XP Power JCK3048S05 Datasheet
Download the complete datasheet for XP Power JCK3048S05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

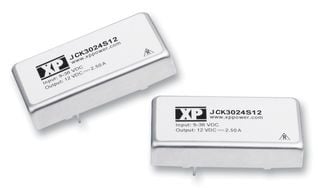

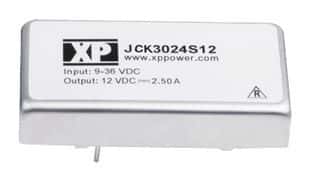

Product Images
