Isolated board mount DC/DC converter featuring a 4:1 input range (9V to 36V DC) and dual outputs. Delivers 6W total output power with 3.3V at 909mA and -3.3V at 909mA. Offers 1.5kV isolation voltage and operates efficiently at 78%. Includes UVLO, OCP, and SCP protection features. Through-hole mounting for PCB integration, with a compact 1.25 x 0.8 x 0.41 inch package.
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
XP Power JTE0624D03 technical specifications.
General
| Current - Output 1 | 909mA |
| Current - Output 2 | 909mA |
| Depth | 31.75mm |
| Efficiency | 78% |
| Features | UVLO, OCP, SCP |
| Height | 0.41inch |
| Isolation Voltage | 1.5kV |
| Length | 1.25inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 909mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | -3.3V |
| Number of Outputs | 2 |
| Output Power | 6W |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | JTE |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | -3.3V |
| Width | 0.8inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power JTE0624D03 Datasheet
Download the complete datasheet for XP Power JTE0624D03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

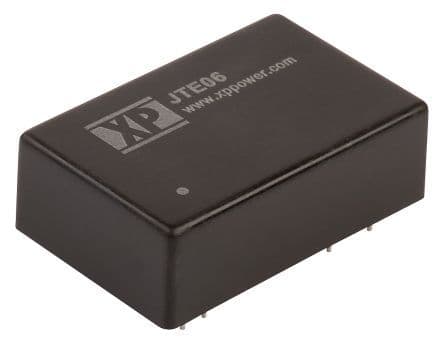

Product Images
