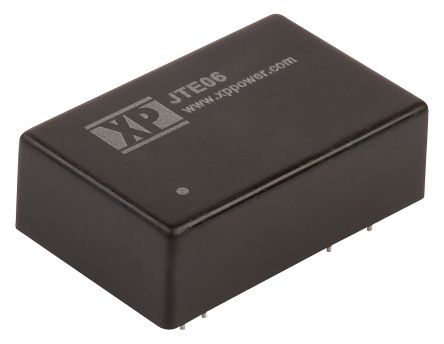

6W DC-DC converter module with a single 12V output, delivering 500mA. Features include 1.5kV isolation, wide 9-36V DC input range, and 84% efficiency. Operating temperature spans -40°C to 100°C, with built-in UVLO, OCP, and SCP protection. This hybrid, plastic DIP-24/8 package is designed for PCB through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power JTE0624S12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power JTE0624S12 technical specifications.
| Current - Output 1 | 500mA |
| Depth | 31.75mm |
| Efficiency | 84% |
| Features | UVLO, OCP, SCP |
| Height | 0.41inch |
| Isolation Voltage | 1.5kV |
| Length | 1.25inch |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Power | 6W |
| Max Power Dissipation | 6W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Power | 6W |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | JTE |
| Voltage - Output 1 | 12V |
| Width | 0.8inch |
| RoHS | Compliant |
