DC/DC LED Power Supply, 29W, single output, 500mA max output current, 57V max output voltage. Features analog and PWM dimming, 97% efficiency, and short-circuit protection (SCP). Operates from 7V to 60V input voltage, with a temperature range of -40°C to 70°C. Chassis mount design with wire lead termination, rated IP67.
MountingChassis Mount
Power29W
Quick Jump:
Technical Specifications
XP Power LDU4860S500-WD technical specifications.
General
Approvals
EN
Dimming
Analog, PWM
Efficiency
97%
Features
SCP
Height
0.49inch
Length
1.25inch
Max Input Voltage
60V
Min Input Voltage
7V
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Power
29W
Max Output Voltage
57V
Max Power Dissipation
29W
Mount
Chassis Mount
Number of Outputs
1
Output Current
500mA
Output Power
29W
Output Voltage
57V
Package Quantity
15
Ratings
IP67
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
LDU48
Termination
Wire Leads
Weight
0.04lb
Width
0.8inch
Compliance
RoHS
Not Compliant
Datasheet
XP Power LDU4860S500-WD Datasheet
Download the complete datasheet for XP Power LDU4860S500-WD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

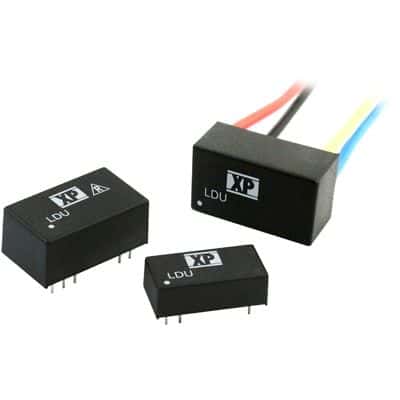

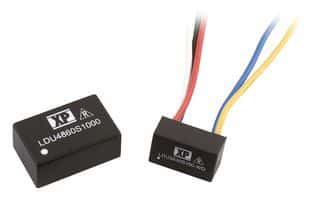

Product Images
