Single-output AC/DC power supply delivering 15V at 40A for a maximum output power of 607W. Features 85% efficiency, 3kV isolation voltage, and a wide operating temperature range from -40°C to 70°C. Input voltage range is 80-264V AC. This chassis and panel mount unit offers 650W maximum power dissipation and is RoHS compliant.
MountingChassis Mount, Panel
Power601W
Quick Jump:
Technical Specifications
XP Power SHP650PS15-EF technical specifications.
General
Approvals
CB
Current - Output 1
40A
Current - Output 2
500mA
Current - Output 3
200mA
Efficiency
85%
Height
2.5inch
Isolation Voltage
3kV
Length
9.18inch
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
80V
Max Input Voltage
264V
Min Input Voltage
80V
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Output Current
40A
Max Output Power
607W
Max Power Dissipation
650W
Mount
Chassis Mount, Panel
Nominal Output Voltage
15V
Number of Outputs
1
Output Power
601W
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SHP
Voltage - Output 1
15V
Voltage - Output 2
12V
Voltage - Output 3
5V
Width
4inch
Compliance
RoHS
Compliant
Datasheet
XP Power SHP650PS15-EF Datasheet
Download the complete datasheet for XP Power SHP650PS15-EF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

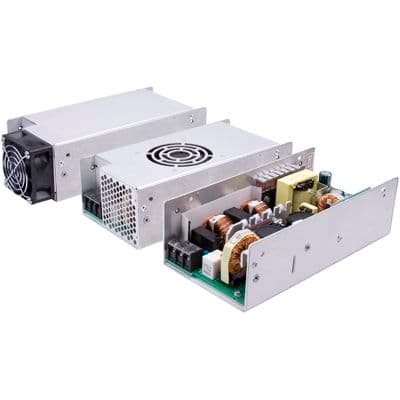

Product Images
