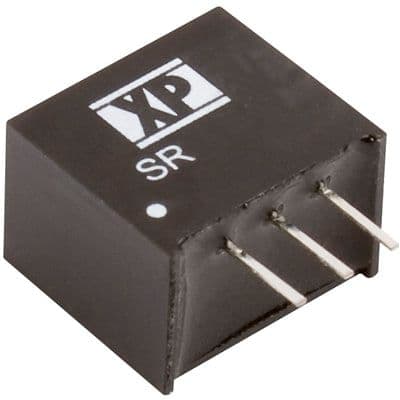

Regulated, non-isolated DC/DC converter with a 1.8V nominal output voltage and 500mA maximum output current, delivering up to 900mW of power. Features a compact SIP package, through-hole mounting for PCB integration, and operates within a wide input voltage range of 4.75V to 34V DC. Achieves 82% efficiency and includes short-circuit protection (SCP), with an operating temperature range from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power SR05S1V8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power SR05S1V8 technical specifications.
| Package/Case | SIP |
| Depth | 11.7mm |
| Efficiency | 82% |
| Features | SCP |
| Height | 0.4inch |
| Length | 0.46inch |
| Max Input Voltage (DC) | 34V |
| Min Input Voltage (DC) | 4.75V |
| Max Input Voltage | 34V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Power | 900mW |
| Max Power Dissipation | 1W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 1.8V |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Power | 1W |
| Output Voltage | 1.8V |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | SR |
| Voltage - Output 1 | 1.8V |
| Width | 0.3inch |
| RoHS | Not Compliant |
