Regulated, non-isolated DC/DC converter with a fixed output voltage of 2.5V. This board mount converter delivers up to 500mA output current and 1.25W maximum output power. Operating within a 4.75V to 34V DC input range, it features a compact SIP package with dimensions of 7.5mm width, 10.2mm height, and 11.7mm depth. Designed for through-hole PCB mounting, it offers 87% efficiency and short-circuit protection (SCP), with an operating temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
XP Power SR05S2V5 technical specifications.
General
| Package/Case | SIP |
| Depth | 11.7mm |
| Efficiency | 87% |
| Features | SCP |
| Height | 10.2mm |
| Max Input Voltage (DC) | 34V |
| Min Input Voltage (DC) | 4.75V |
| Max Input Voltage | 34V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Power | 1.25W |
| Max Power Dissipation | 1W |
| Mount | Through Hole, PCB |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Output Power | 1W |
| Output Voltage | 2.5V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | SR |
| Voltage - Output 1 | 2.5V |
| Width | 7.5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
XP Power SR05S2V5 Datasheet
Download the complete datasheet for XP Power SR05S2V5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

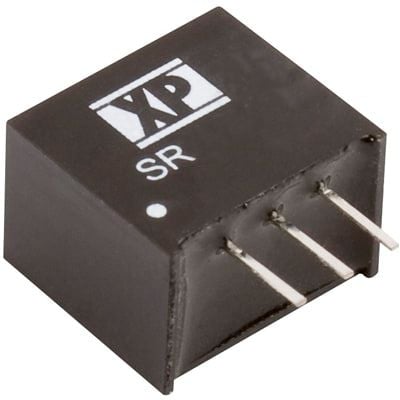

Product Images
