Board mount DC/DC converter delivering 12V nominal output voltage at 6W maximum output power. Features include short circuit protection (SCP) and a single output. Operates with a 14V to 28V DC input voltage range, achieving up to 94% efficiency. This component is RoHS compliant and designed for PCB mounting with a compact 0.46 x 0.3 x 0.4 inch footprint. Operating temperature range spans -40°C to 85°C.
MountingThrough Hole, PCB
Power6W
Quick Jump:
Technical Specifications
XP Power TR05S12 technical specifications.
General
Efficiency
94%
Features
SCP
Height
0.4inch
Length
0.46inch
Max Input Voltage (DC)
28V
Min Input Voltage (DC)
14V
Max Input Voltage
28V
Min Input Voltage
14V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Power
6W
Max Power Dissipation
6W
Mount
Through Hole, PCB
Nominal Output Voltage
12V
Number of Outputs
1
Output Power
6W
Package Quantity
42
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TR
Voltage - Output 1
12V
Width
0.3inch
Compliance
RoHS
Compliant
Datasheet
XP Power TR05S12 Datasheet
Download the complete datasheet for XP Power TR05S12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

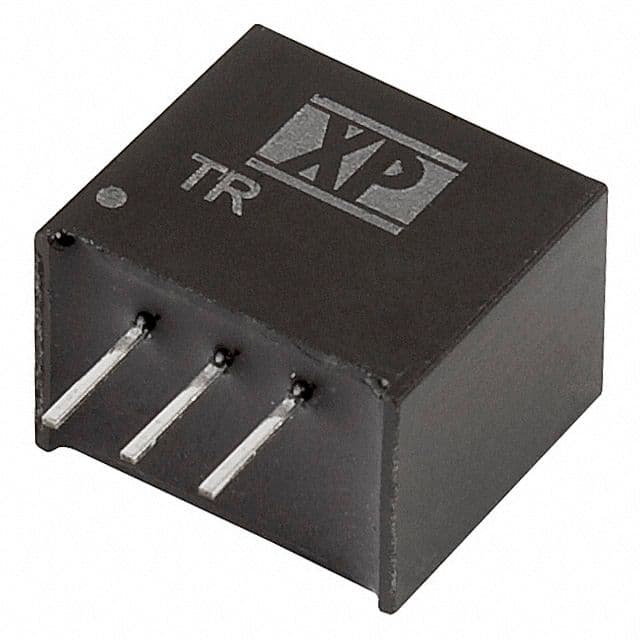

Product Images
