100W AC/DC power supply, single output, delivering 15V at 6.67A. Features 86% efficiency and 3kV isolation voltage. Operates from 85-264V AC input, with a wide temperature range of -25°C to 70°C. Chassis and panel mountable, with dimensions of 6.26" L x 3.87" W x 1.65" H. RoHS compliant.
Package100
MountingChassis Mount, Panel
Power100W
Quick Jump:
Technical Specifications
XP Power VCS100US15 technical specifications.
General
| Approvals | CB |
| Package/Case | 100 |
| Current - Output 1 | 6.67A |
| Efficiency | 86% |
| Height | 1.65inch |
| Isolation Voltage | 3kV |
| Length | 6.26inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 6.67A |
| Max Output Power | 100W |
| Max Power Dissipation | 100W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Output Power | 100W |
| Package Quantity | 5 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | VCS |
| Voltage - Output 1 | 15V |
| Width | 3.87inch |
Compliance
| RoHS | Compliant |
Datasheet
XP Power VCS100US15 Datasheet
Download the complete datasheet for XP Power VCS100US15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

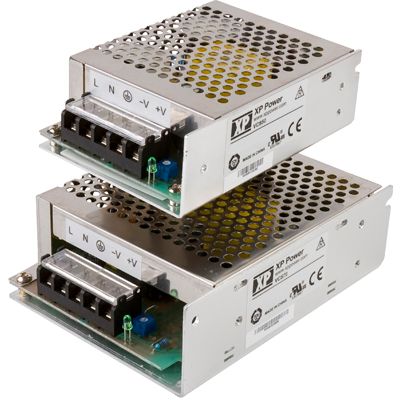

Product Images
