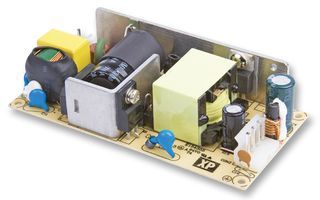

Single-output AC/DC power supply delivering 60W maximum output power with a nominal output voltage of 15V and a maximum output current of 5A. Features 87% efficiency, 3kV isolation voltage, and operates within an input voltage range of 85-264V AC. This chassis-mount power supply has dimensions of 4 inches (length) x 2 inches (width) x 0.84 inches (height) and an operating temperature range of -10°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the XP Power VCT60US15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
XP Power VCT60US15 technical specifications.
| Current - Output 1 | 5A |
| Efficiency | 87% |
| Height | 0.84inch |
| Isolation Voltage | 3kV |
| Length | 4inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 4A |
| Max Output Power | 60W |
| Max Power Dissipation | 60W |
| Mount | Chassis Mount, Chassis |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Output Power | 60W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | VCT |
| Voltage - Output 1 | 15V |
| Width | 2inch |
| RoHS | Not Compliant |
