150W AC/DC power supply, single output, delivering 48V at 2.1A. Features 92% efficiency and 3kV isolation voltage. Operates from 90-264V AC input, with a temperature range of -10°C to 70°C. Chassis mountable, measuring 5 x 3 x 1.3 inches.
MountingChassis Mount, Chassis
Power150W
Quick Jump:
Technical Specifications
XP Power VFT150PS48 technical specifications.
General
| Current - Output 1 | 3.13A |
| Efficiency | 92% |
| Height | 1.3inch |
| Isolation Voltage | 3kV |
| Length | 5inch |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.1A |
| Max Output Power | 150W |
| Max Power Dissipation | 150W |
| Mount | Chassis Mount, Chassis |
| Nominal Output Voltage | 48V |
| Number of Outputs | 1 |
| Output Power | 150W |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | VFT |
| Voltage - Output 1 | 48V |
| Width | 3inch |
Compliance
| RoHS | Not Compliant |
Datasheet
XP Power VFT150PS48 Datasheet
Download the complete datasheet for XP Power VFT150PS48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

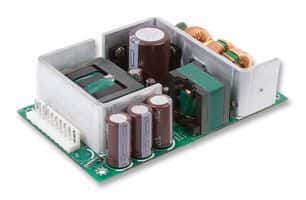

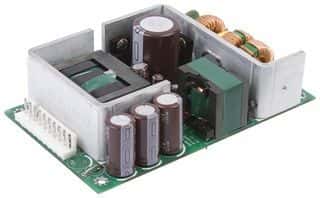

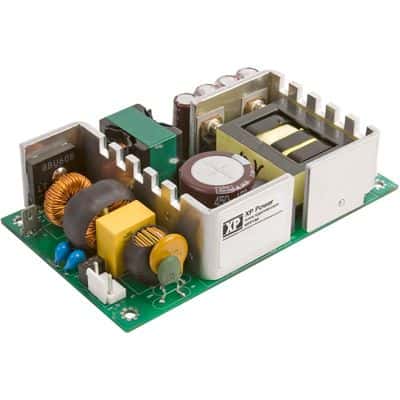

Product Images
