The WD202 DC/DC converter from XP Power is a 12V 1.25A 15W board mount module with a nominal output voltage of 12V and a maximum output current of 1.25A. It operates within a 18-36V input voltage range and has an efficiency of 80%. The module measures 50.8mm in depth, 25.4mm in width, and 10.2mm in height. It features SCP and has a maximum power dissipation of 15W.
Quick Jump:
Technical Specifications
XP Power WD202 technical specifications.
General
| Current - Output 1 | 1.25A |
| Depth | 50.8mm |
| Efficiency | 80% |
| Features | SCP |
| Height | 10.2mm |
| Isolation Voltage | 500V |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 18V |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Output Current | 1.25A |
| Max Output Power | 15W |
| Max Power Dissipation | 15W |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | WD (15W) |
| Voltage - Output 1 | 12V |
| Width | 25.4mm |
Compliance
| RoHS | Not Compliant |
Datasheet
XP Power WD202 Datasheet
Download the complete datasheet for XP Power WD202 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

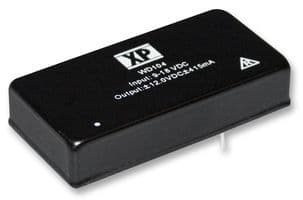

Product Images
