![Zero Ohm Resistor, Jumper, 0402 [1005 Metric], Thick Film, 63 mW, 1 A, Surface Mount](https://static.datasheets.com/image/23675499-yageo-ac0402jr-070rl-image.jpg)
Quick Jump:
Technical Specifications
Yageo AC0402JR-070RL technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.015inch |
| Lead Free | Lead Free |
| Length | 0.039inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Resistance | 0R |
| RoHS Compliant | Yes |
| Series | AC |
| Size Code | 0402 |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage Rating | 50V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo AC0402JR-070RL Datasheet
Download the complete datasheet for Yageo AC0402JR-070RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

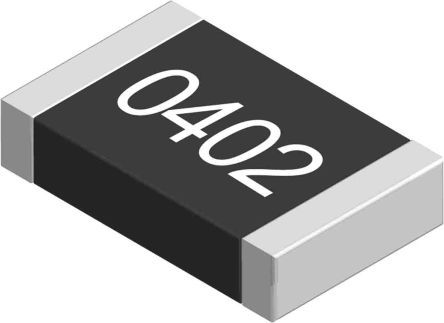

Product Images
