The AC1206FR-073K3L is a 200V 3.3kR 1% SMD/SMT chip resistor from Yageo. It features moisture resistant construction and is compliant with automotive AEC-Q200 standards. The resistor has a maximum operating temperature range of -55°C to 155°C and a maximum power dissipation of 250mW. It is available in a 1206 package with a height of 0.026inch and a width of 1.6mm, suitable for surface mount technology.
Package1206
Resistance3.3kR
Voltage Rating200V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Yageo AC1206FR-073K3L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Yageo AC1206FR-073K3L technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Features | Moisture Resistant, Automotive AEC-Q200 |
| Height | 0.026inch |
| Lead Free | Lead Free |
| Length | 0.122inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Resistance | 3.3kR |
| RoHS Compliant | Yes |
| Series | AC |
| Size Code | 1206 |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 200V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Yageo AC1206FR-073K3L Datasheet
Download the complete datasheet for Yageo AC1206FR-073K3L to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

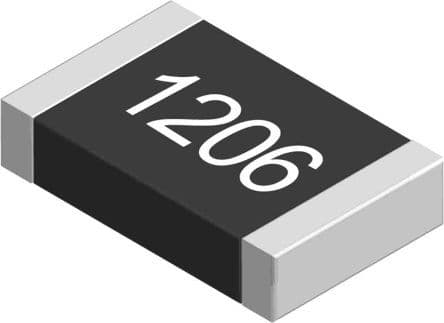

Product Images
