Yageo
AC1206JR-07100RL
SMD Chip Resistor, 100 Ohm, ± 5%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose
Package1206
Resistance100R
Voltage Rating200V
Quick Jump:
Technical Specifications
Yageo AC1206JR-07100RL technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Features
Moisture Resistant, Automotive AEC-Q200
Height
0.026inch
Length
0.122inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Number of Terminations
2
Packaging
Tape and Reel
Resistance
100R
RoHS Compliant
Yes
Series
AC
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
200V
Weight
0.000571oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Yageo AC1206JR-07100RL Datasheet
Download the complete datasheet for Yageo AC1206JR-07100RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

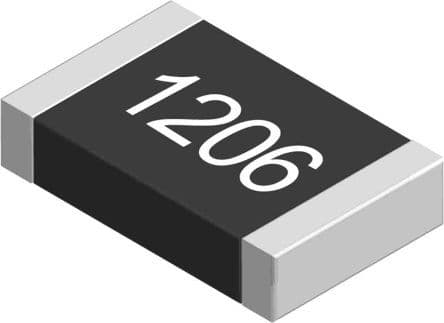

Product Images
