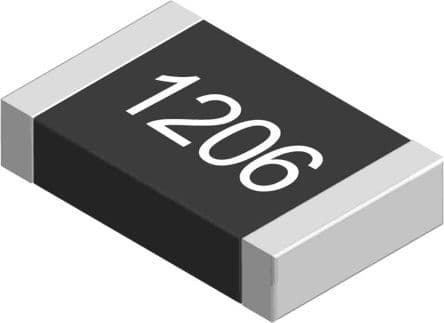

![SMD Chip Resistor, 47 Ohm, ± 5%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose](https://static.datasheets.com/image/29793499-yageo-ac1206jr-0747rl-image.jpg)
Yageo
AC1206JR-0747RL
SMD Chip Resistor, 47 Ohm, ± 5%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose
Package1206
Resistance47R
Voltage Rating200V
Quick Jump:
Technical Specifications
Yageo AC1206JR-0747RL technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Rectangular
Depth
1.6mm
Features
Moisture Resistant, Automotive AEC-Q200
Height
0.026inch
Length
3.1mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Military Standard
Not
Number of Terminations
2
Packaging
Tape and Reel
Resistance
47R
RoHS Compliant
Yes
Series
AC
Termination
SMD/SMT
Tolerance
5%
Voltage Rating
200V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Yageo AC1206JR-0747RL Datasheet
Download the complete datasheet for Yageo AC1206JR-0747RL to view detailed technical specifications.
