Surface mount multilayer ceramic capacitor with 0.1 µF capacitance and 10% tolerance. Features X7R dielectric, 10V DC rated voltage, and a 0402 [1005 Metric] case code. Operates within a -55°C to +125°C temperature range. RoHS and Halogen Free compliant.
Package0402
Voltage10V
Capacitance100nF
Voltage Rating10V
Quick Jump:
Technical Specifications
Yageo CC0402KRX7R6BB104 technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Flat |
| Depth | 0.5mm |
| Dielectric | X7R |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Thickness | 0.022inch |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC0402KRX7R6BB104 Datasheet
Download the complete datasheet for Yageo CC0402KRX7R6BB104 to view detailed technical specifications.
No datasheet is available for this part.

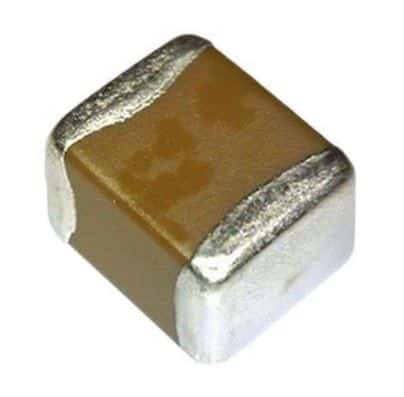

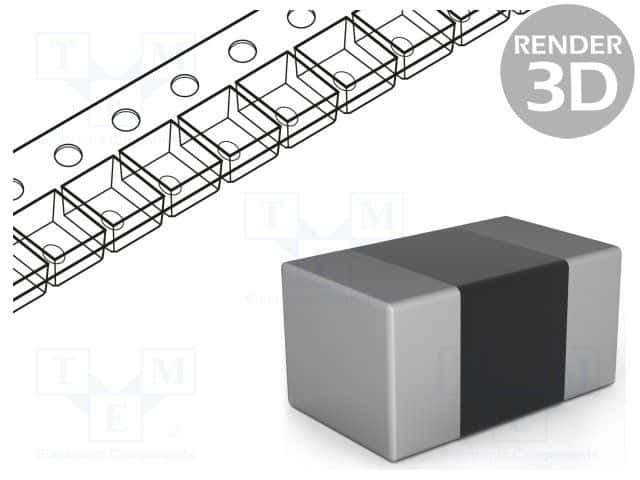

Product Images
