Surface mount multilayer ceramic capacitor with 20pF capacitance and 50V DC rating. Features a ±5% tolerance and C0G (NP0) dielectric for stable performance. Housed in a compact 0603 [1608 Metric] case, this component is RoHS and Halogen Free compliant, operating across a -55°C to 125°C temperature range.
Package0603
Capacitance20pF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC0603JRNPO9BN200 technical specifications.
General
| Capacitance | 20pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Dielectric | NP0 |
| Halogen Free | Halogen Free |
| Height | 900um |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 7.1E-05oz |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC0603JRNPO9BN200 Datasheet
Download the complete datasheet for Yageo CC0603JRNPO9BN200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

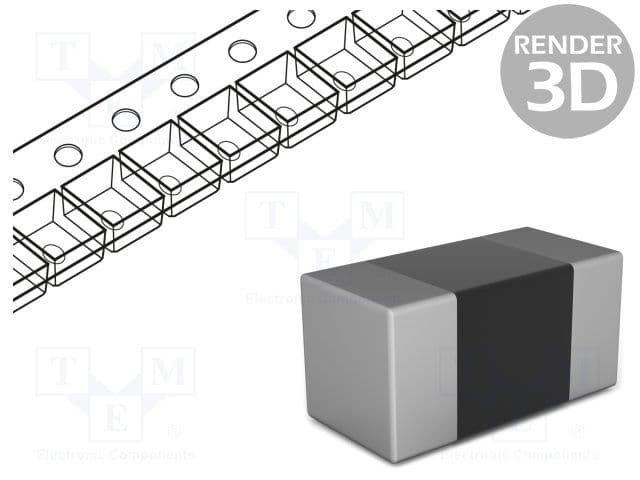

Product Images
