Multilayer Ceramic Capacitor (MLCC) with 2.2nF capacitance and 100V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range. 10% tolerance ensures precise capacitance. Surface mountable in a 0603 (1608 metric) case code with lead-free termination. Packaged on tape and reel.
Package0603
Capacitance2.2nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC0603KRX7R0BB222 technical specifications.
General
| Capacitance | 2.2nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Flat |
| Depth | 0.8mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Weight | 7.1E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC0603KRX7R0BB222 Datasheet
Download the complete datasheet for Yageo CC0603KRX7R0BB222 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

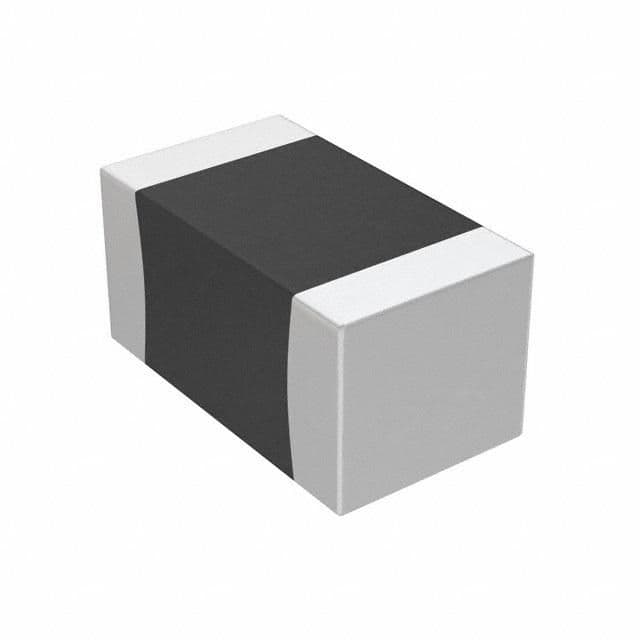

Product Images
