Multilayer Ceramic Capacitor (MLCC) with 470pF capacitance and 500V DC rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 5% tolerance. Packaged in an 0805 (2012 metric) surface mount case, this RoHS compliant component is supplied on tape and reel.
Package0805
Capacitance470pF
Voltage Rating500V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC0805JRNPOBBN471 technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.85mm |
| Length | 0.079inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 5% |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC0805JRNPOBBN471 Datasheet
Download the complete datasheet for Yageo CC0805JRNPOBBN471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

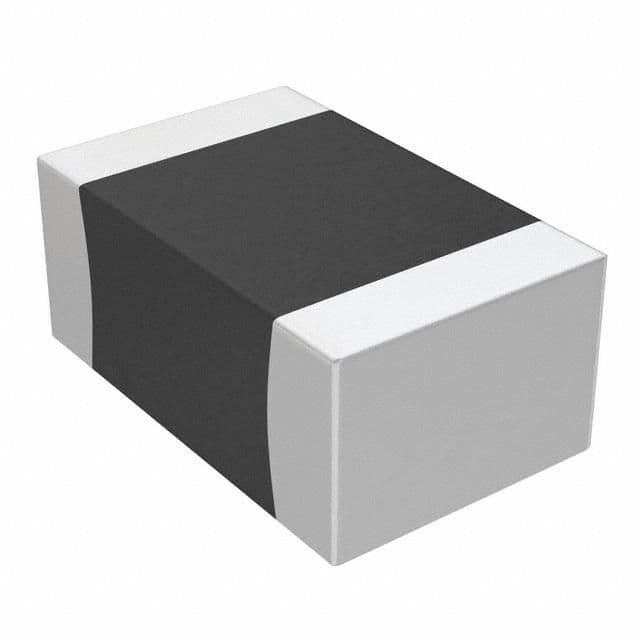

Product Images
