Multilayer Ceramic Capacitor (MLCC) with 1.8nF capacitance and 50V DC rating. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) SMD package. Operates from -55°C to 125°C, offering lead-free, halogen-free, and RoHS compliant construction. Supplied in tape and reel packaging.
Package0805
Capacitance1.8nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC0805KRX7R9BB182 technical specifications.
General
| Capacitance | 1.8nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Halogen Free | Halogen Free |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Thickness | 0.057inch |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC0805KRX7R9BB182 Datasheet
Download the complete datasheet for Yageo CC0805KRX7R9BB182 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

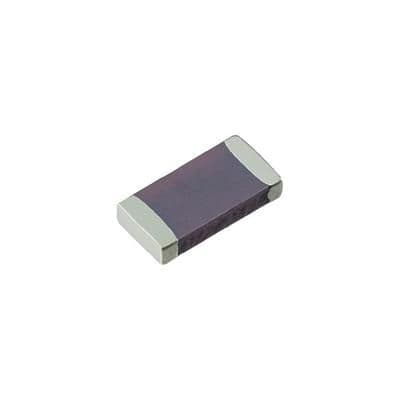

Product Images
