Multilayer ceramic capacitor with 1nF capacitance and 250V DC rating. Features X7R dielectric, 10% tolerance, and a 0805 surface mount package. Operates from -55°C to 125°C, is RoHS compliant, and lead-free. Packaged in tape and reel.
Package0805
Capacitance1nF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC0805KRX7RYBB102 technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | CC |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 10% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC0805KRX7RYBB102 Datasheet
Download the complete datasheet for Yageo CC0805KRX7RYBB102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

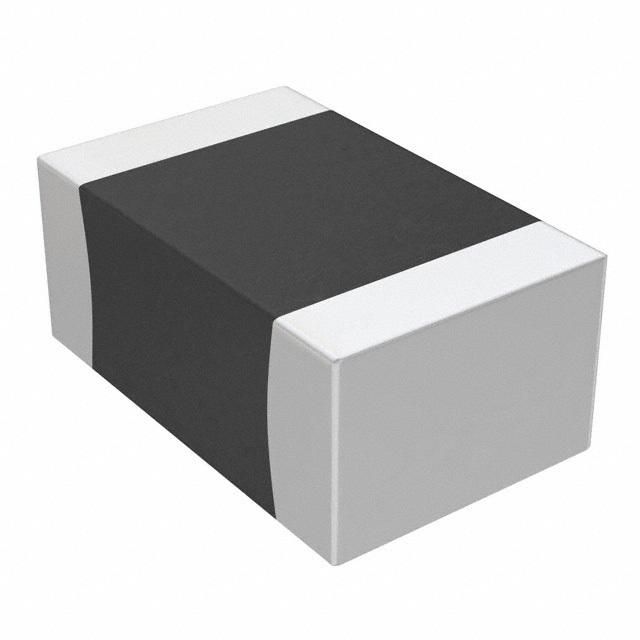

Product Images
