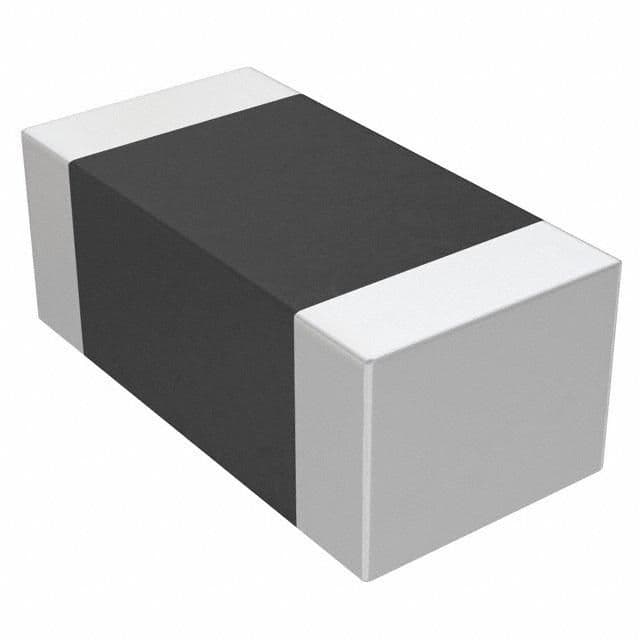

1uF, 10V multilayer ceramic capacitor (MLCC) with X7R dielectric and 10% tolerance. Features a 1206 (3216 metric) surface mount package with SMD/SMT termination. Operating temperature range from -55°C to 125°C. Halogen free, lead free, and RoHS compliant.
Package1206
Capacitance1uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC1206KKX7R6BB105 technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric
X7R
Halogen Free
Halogen Free
Height
1.15mm
Lead Free
Lead Free
Length
3.2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CC
Termination
SMD/SMT
Thickness
0.049inch
Tolerance
10%
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.000571oz
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Yageo CC1206KKX7R6BB105 Datasheet
Download the complete datasheet for Yageo CC1206KKX7R6BB105 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
