Multilayer Ceramic Capacitor (MLCC) with 10µF capacitance and 50V DC rating. Features Y5V dielectric with a wide tolerance of -20% to +80%. Surface mountable in a 1210 (3225 metric) case code, operating from -30°C to 85°C. Halogen-free, lead-free, and RoHS compliant, supplied on tape and reel.
Package1210
Capacitance10uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Yageo CC1210ZKY5V9BB106 technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Dielectric | Y5V |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CC |
| Tolerance | 80% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 0.000564oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Yageo CC1210ZKY5V9BB106 Datasheet
Download the complete datasheet for Yageo CC1210ZKY5V9BB106 to view detailed technical specifications.
No datasheet is available for this part.

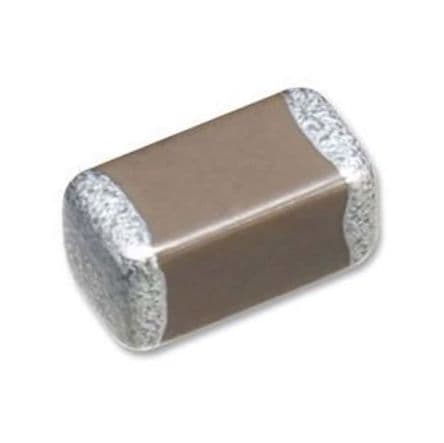

Product Images
