General purpose thick film chip resistor, 0402 (1005 metric) SMD package. Features 150 Ohm resistance with 1% tolerance, 1/16W (63mW) power dissipation, and a voltage rating of 50V. Operating temperature range from -55°C to 155°C with a temperature coefficient of ±100ppm/°C. Molded construction, moisture resistant, lead-free, and RoHS compliant, supplied in tape and reel packaging.
Package0402
Resistance150R
Voltage Rating50V
Quick Jump:
Technical Specifications
Yageo RC0402FR-07150RL technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Depth | 0.5mm |
| Features | Moisture Resistant |
| Height | 0.016inch |
| Lead Free | Lead Free |
| Length | 0.039inch |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 150R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | RC |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| Width | 0.02inch |
| Working Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Yageo RC0402FR-07150RL Datasheet
Download the complete datasheet for Yageo RC0402FR-07150RL to view detailed technical specifications.
No datasheet is available for this part.

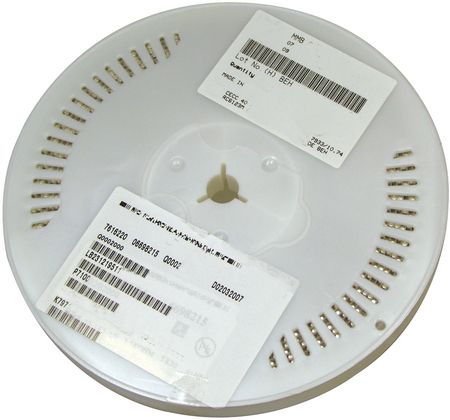

Product Images
